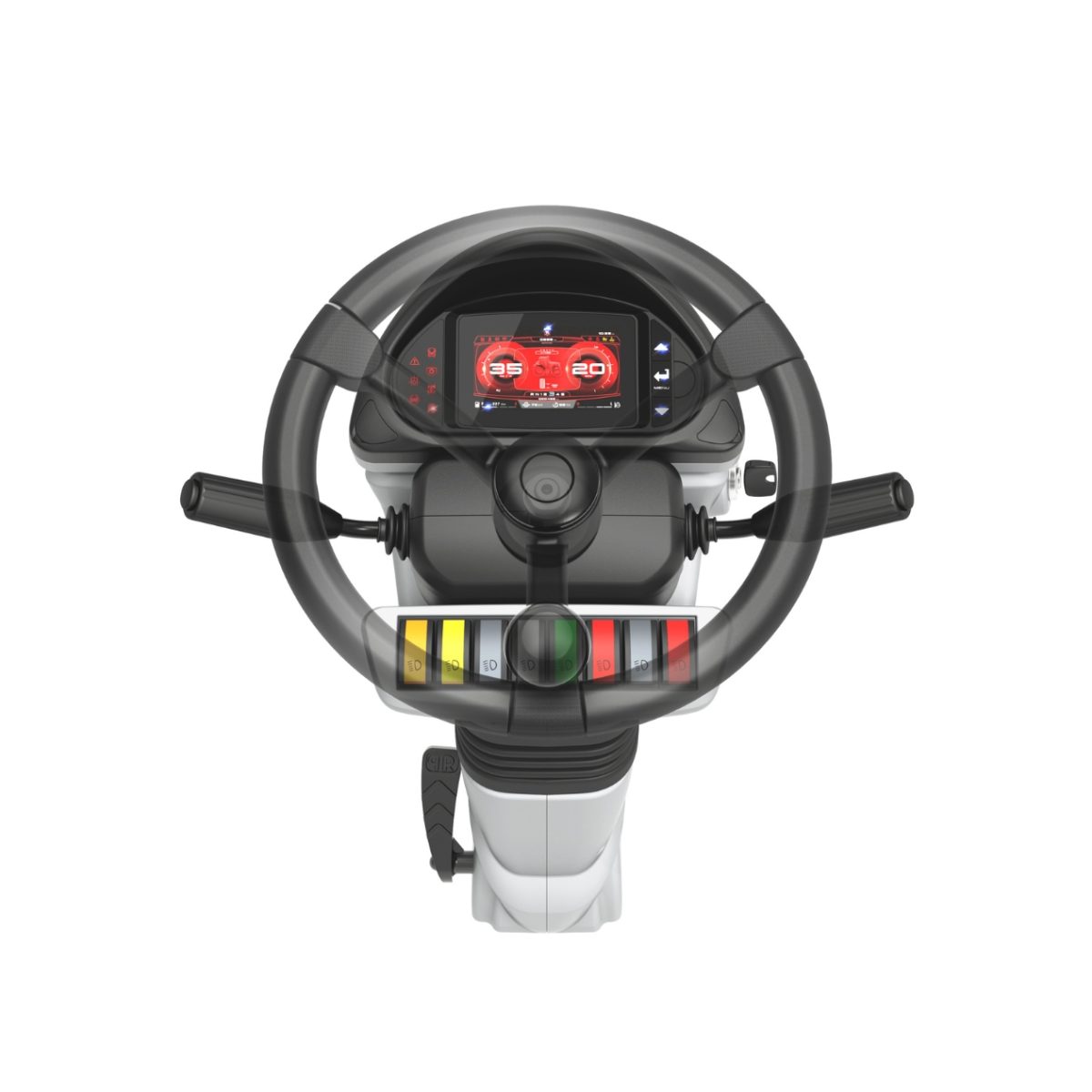

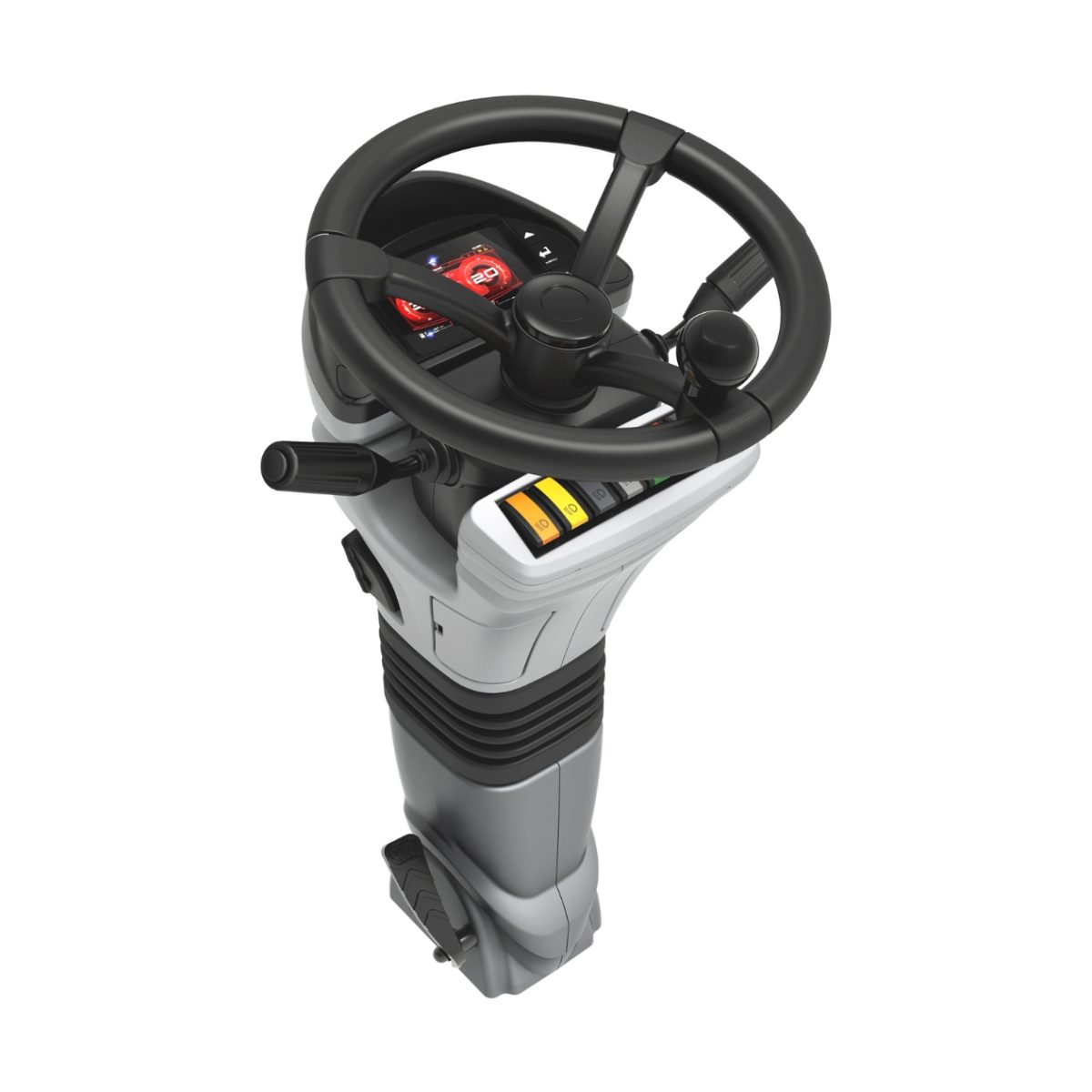

CL 5000J

Steering columns

CL 5000J

Standard features

  • Injection plastic covers: RAL9005 or RAL7015
  • Accomodation for ignition switch
  • Accomodation for J-Cluster or Nimbus
  • Panel with 8 rocker switches
  • Accomodation stalk switches on LH and/or RH side
  • Steering wheel
  • Wiring harness (standard or customized)

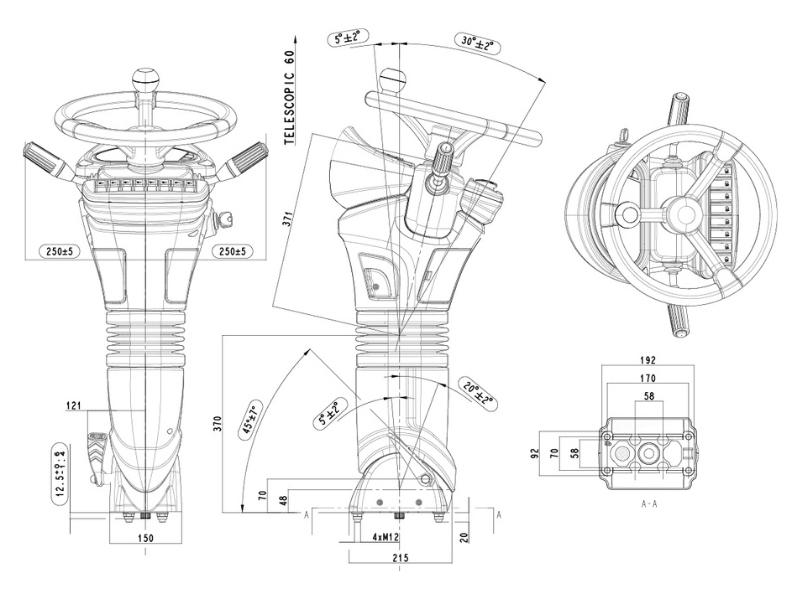

Dual tilt adjustment:
  • Upper pivot , located at mid column lenght, operated push lever on left side (5° toward windshield 30° toward operator)
  • Lower pivot located at the base of the column, operated by a dedicated pedal on left side (5° toward windshield and 30° toward operator)
  • Both tilt adjustment are gas strut assisted
Telescopic adjustment:
  • Located onto upper section (60 mm)
  • Operated by push lever on left side
