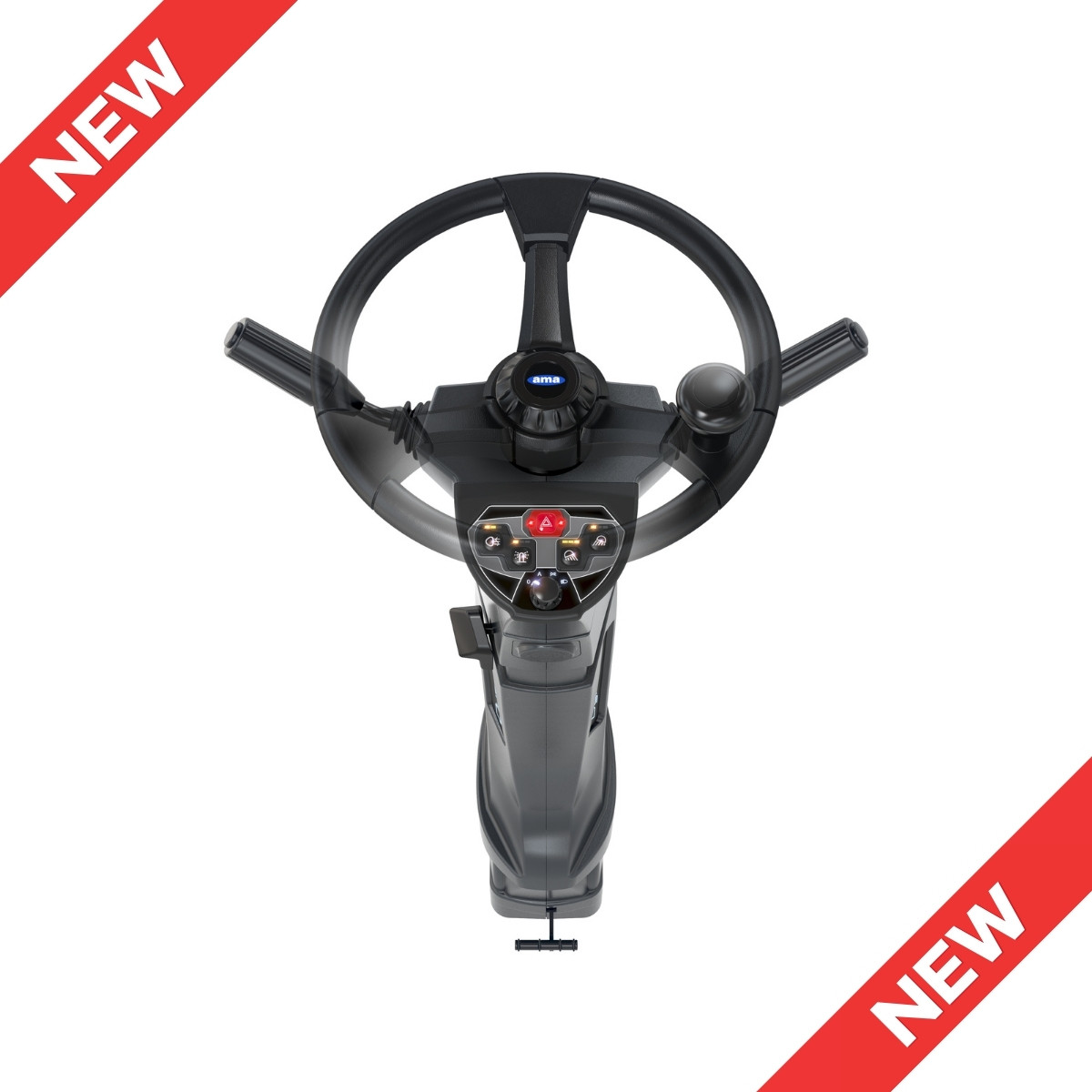

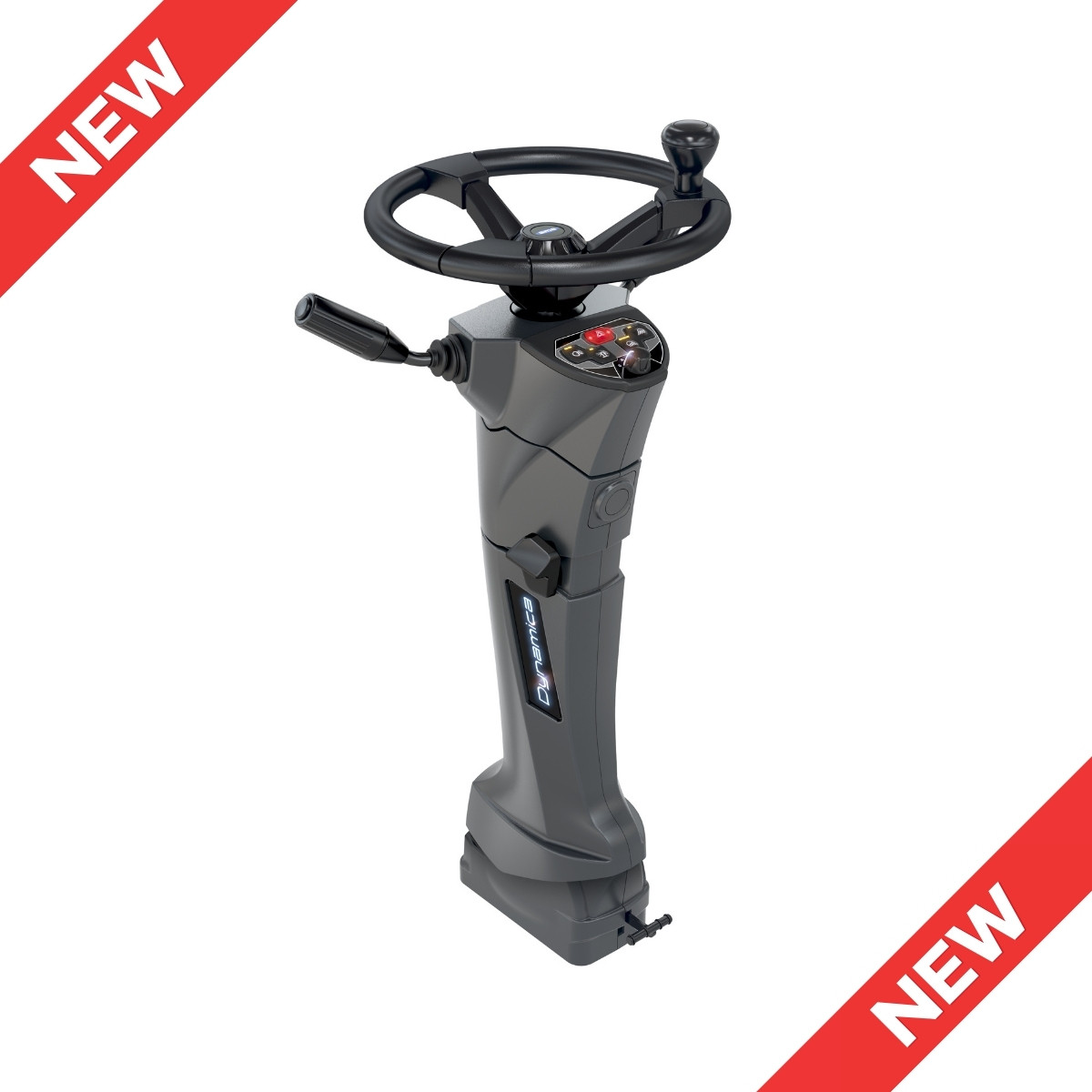

Standard features
- Injection plastic covers: RAL7015 or RAL9005
- Panel with canbus keypad with 5 pushbuttons: hazard function and 4 functions switches customizable
- Accomodation stalk switches on LH and/or RH side
- CANBUS plug and play
- Wiring harness (standard or customized)
- Customizable logo with or without backlight
- Option solar light sensor for automatic lighting
Dual tilt adjustment
- Upper pivot, located at mid column lenght,

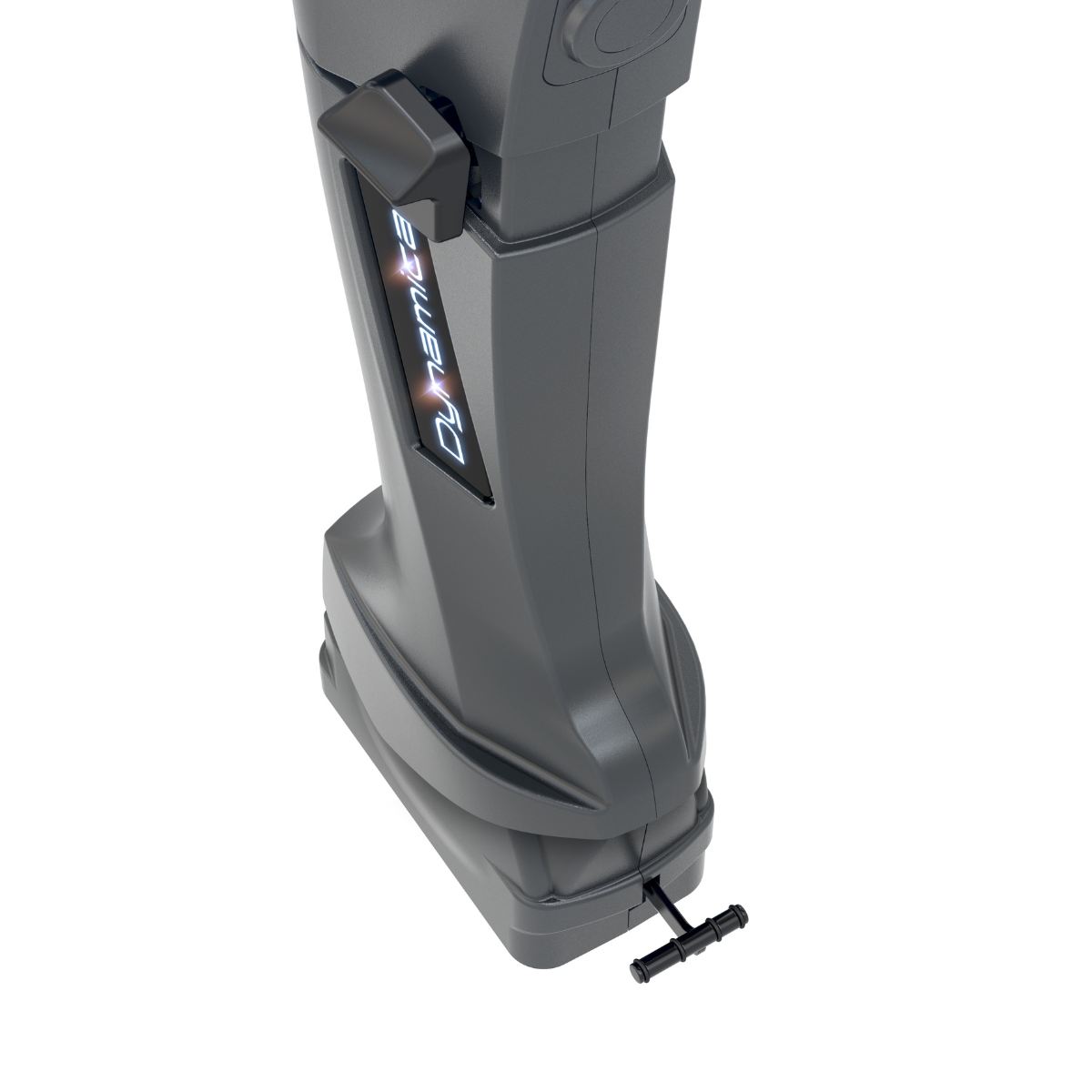

operated push lever on left side (30° toward operator) - Lower pivot located at the base of the column, operated by a dedicated pedal (5° toward windshield and 20°toward operator)

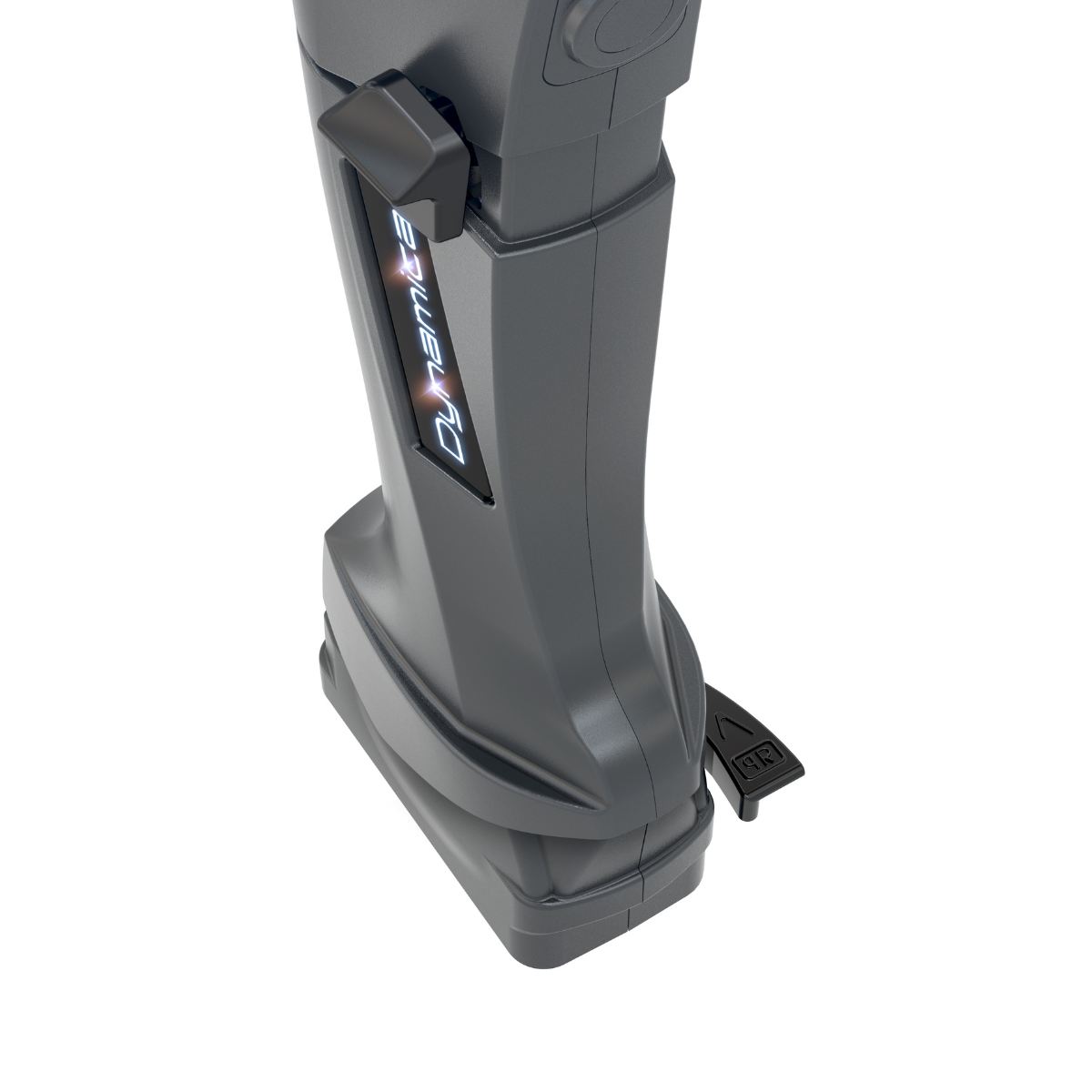

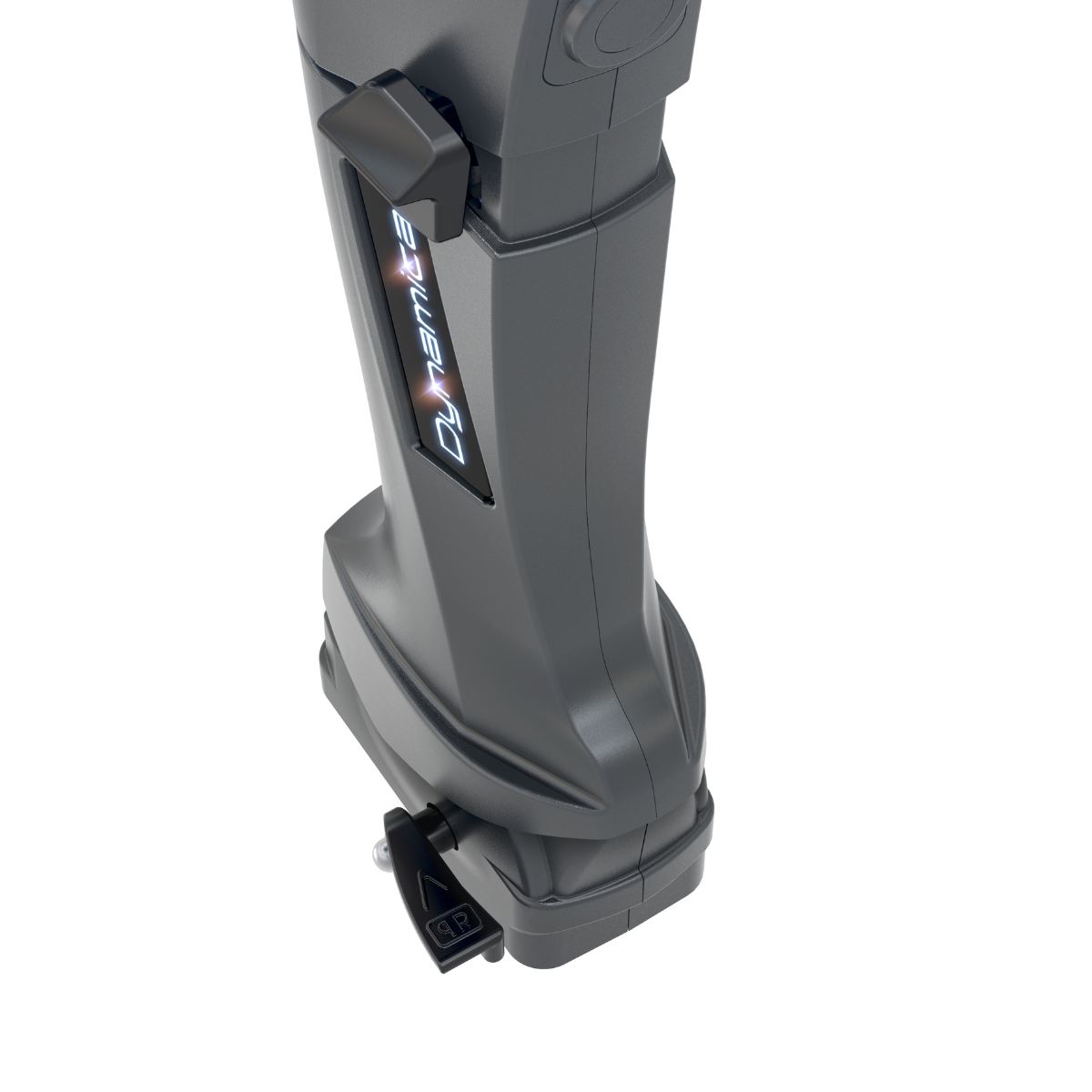

- Possibility to choice pedal position: left, central or right side
- Both tilt adjustment are gas strut assisted
Telescopic adjustment:
- Located onto upper section (75 mm)
- Operated by center cap on steering wheel
In details

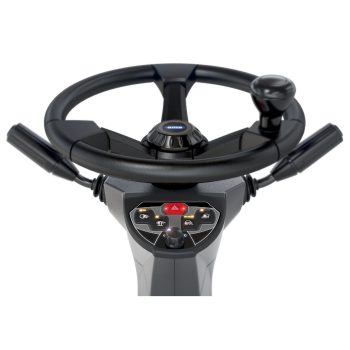

Front panel
Small control panel with serial communication (Can
Bus) where 5 control buttons are integrated, 4 of which
can be configured as a function symbol, LED color and
for software functionality.
Aesthetic design of the buttons allows them to be used
inside the cab with Keycan product.

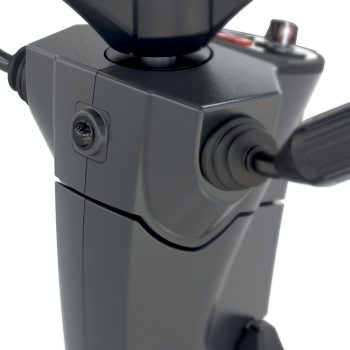

Solar light sensor
Possibility of inserting a sunlight sensor for automatic
activation of street lights.
Customer logo
The side finishes placed in the lower part of the column
can be customized with the customer logo and can also
be backlit.
