Tilt adjustment:

• Pivot located at mid column length.
• Travel option 1: 12° toward windshield, 15° toward
  operator
• Travel option 2: 0° toward windshield, 30° toward
  operator
• Operated by a dedicated rotating lever.

Telescopic adjustment:

• Located onto 38mm dia upper section.
• Travel: 45mm.
• Operated by a dedicated rotating lever.

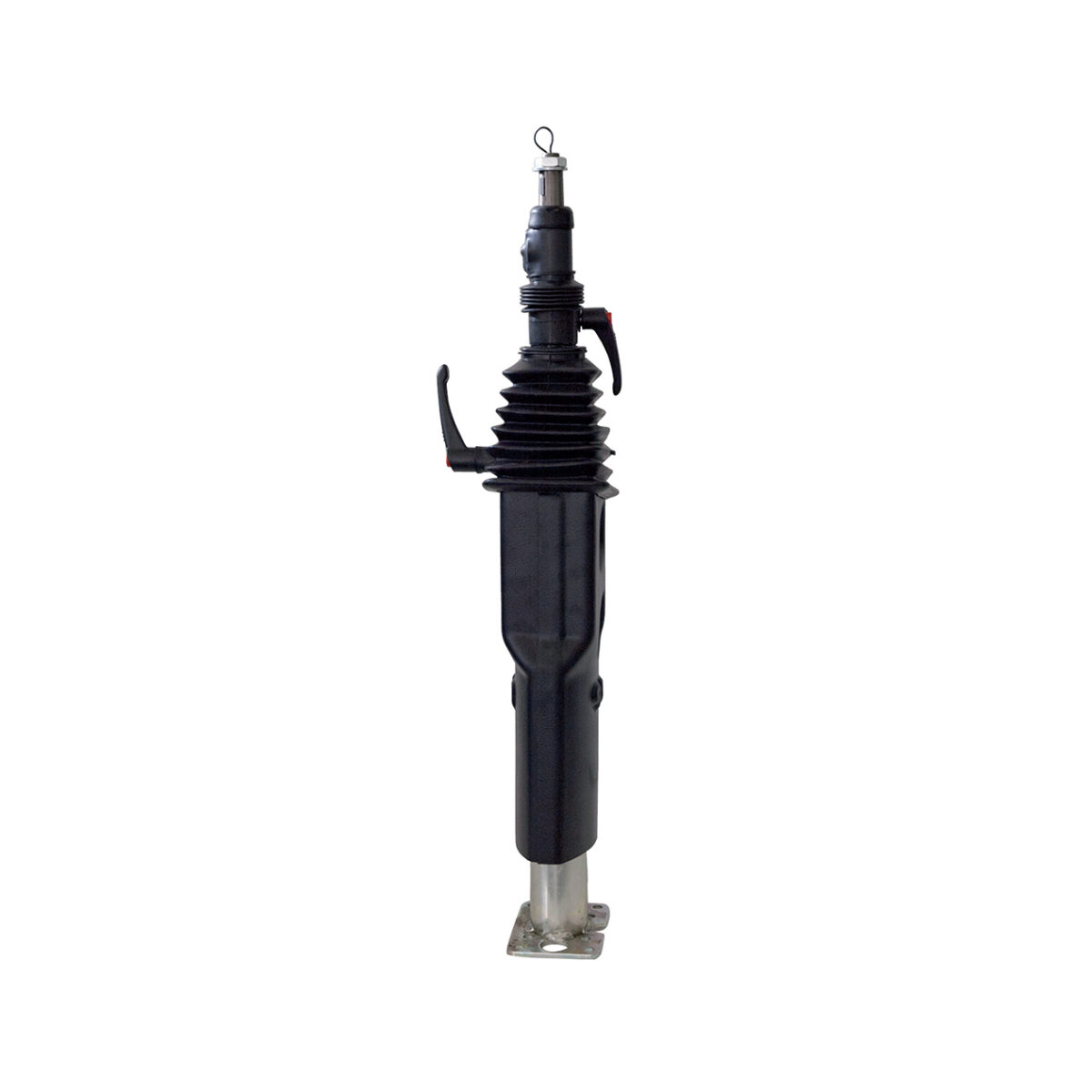

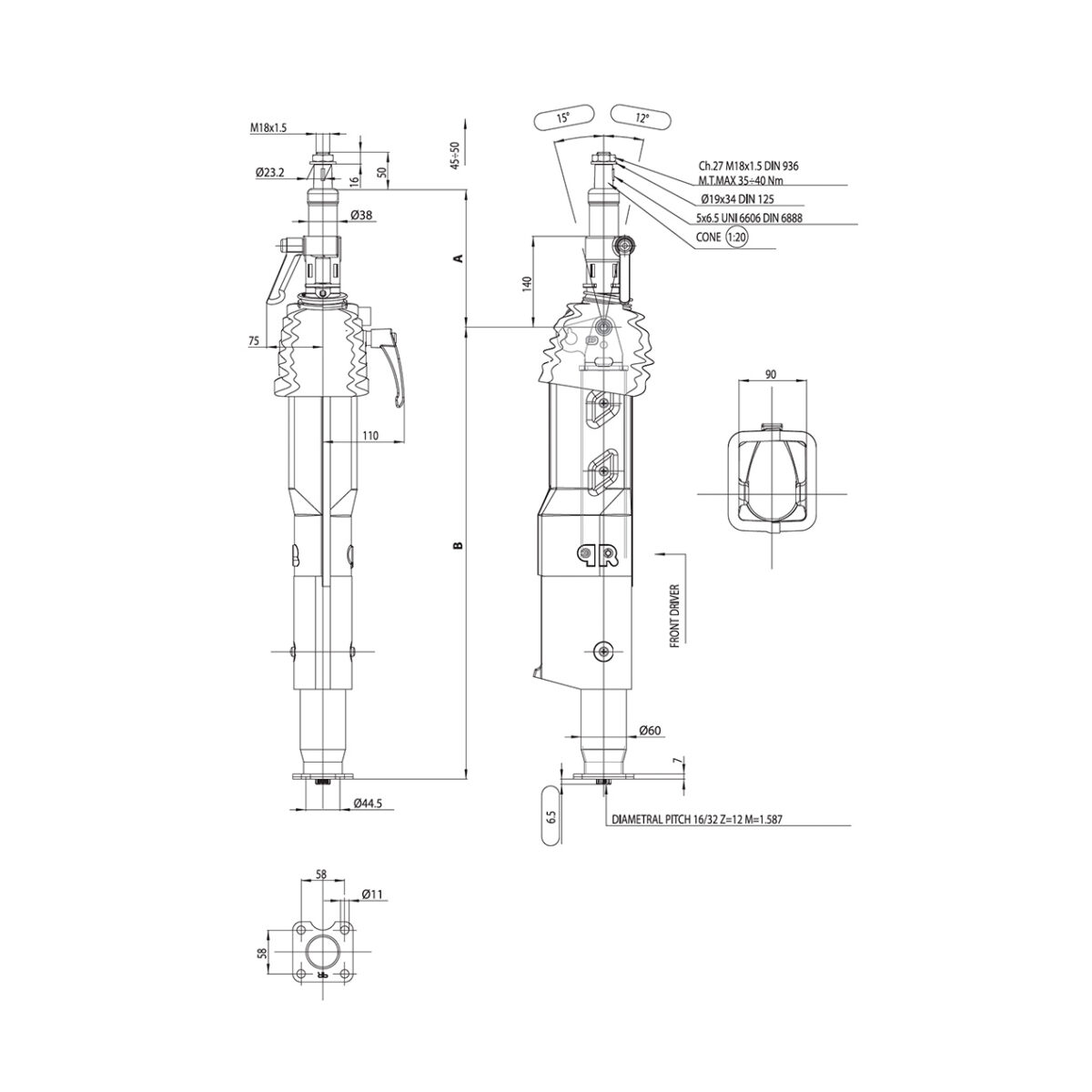

Standard lower section is 60mm Dia. Upper section and lo- wer section lengths can be chosen from standard options shown on our drawing. Standard rubber bellow available. Unit can be supplied equipped with set of ABS plastic co- vers made via Thermo-moulding vacuum system (design and tools are property of AMA Spa).
